Installation Guide
Simple steps for installing your Shield Blinds.
For your convenience, you can either watch the installation video below or follow the detailed step-by-step written instructions beneath the video. Both options will guide you through the process to ensure a smooth installation of your Shield.
What's in the box?
Recess Mounting Steps
Step 1 – Mark & Drill the Mounting Holes
Position the Shield Blinds inside the recess and use a pencil to mark each fixing point. Remove the shield and drill pilot holes at the marked locations using the appropriate drill bit.
Step 2 – Insert the Wall Plugs
Push the supplied wall plugs firmly into each drilled hole until they sit flush with the wall. These provide a secure anchor for the mounting screws.
Step 3 – Apply the Mounting Tape
Clean the mounting surface to remove any dust or debris. Apply the supplied double-sided mounting tape evenly along the back of the frame for added stability during installation.
Step 4 – Position the Shield in the Recess
Carefully place the Shield Blinds into the recess, aligning the frame with the drilled holes. Check that it is level and properly positioned before securing it.
Step 5 – Secure with Screws

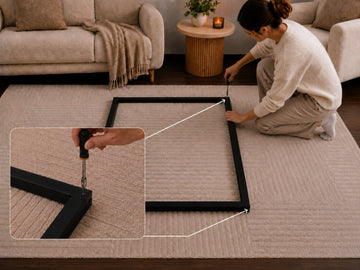

Using a Phillips screwdriver, insert the supplied screws through the mounting holes and tighten them evenly. Avoid over-tightening to prevent damage while ensuring the shield is firmly fixed.
Six steps to install Shield

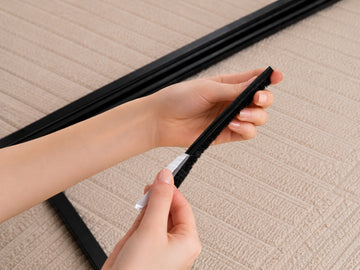

Step 1: Peel back the brush strip backing
Peel off a small part of the protective backing from the brush strip - just enough to get started. You'll keep peeling as you apply it.

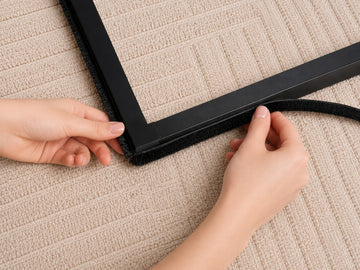

Step 2: Apply the brush strip

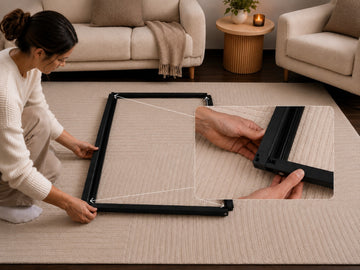

Press the brush strip down as close to the back side of the frame as possible, leaving free space above it for the weather strip. Peel back more of the backing as you work your way along each side. Cut away any excess at the end, then repeat on all four sides.
Note:At every corner, press the strip so it forms a clean 90° angle.

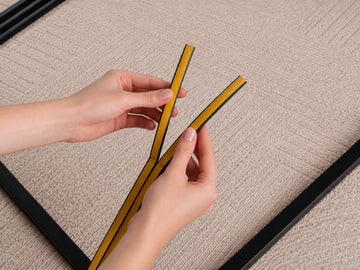

Step 3: Split the weather strip
Split the provided weather strip into two equal parts.

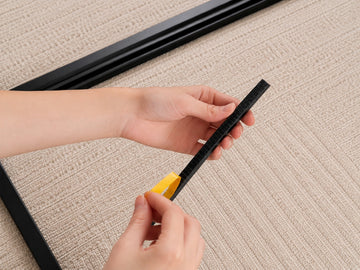

Step 4: Peel back the weather strip backing
Peel a small length of the protective backing off one end of the weather strip to begin. You'll peel away the rest as you go.

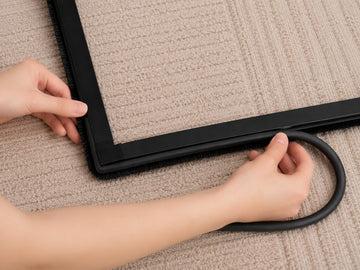

Step 5: Apply the Weather Strip
Apply the weather strip directly above the brush strip. Continue peeling the backing as you go, and cut away any excess at the end. Cover all four sides without gaps.

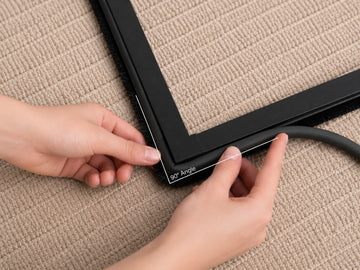

Form the Corners
When applying the weather strip, do not stretch it across corners. Keep it relaxed and fully seated, forming a clean 90-degree angle to match the frame. If pulled too tightly, it may create small gaps in the corners where light can leak through.
Step 6: Insert and Test Shield

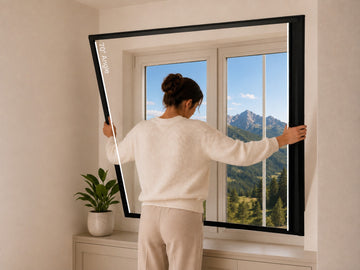

Insert the blinds into your window recess at a 70-degree angle. Start by guiding the bottom of the blinds into place, pushing it firmly to the bottom first, then finish by pushing the top of the blinds into position. Once inserted, test the blinds by opening and closing them.
FAQs
What makes Shield different from other blackout blinds?
Shield features a unique track system that eliminates gaps between the blinds and the window frame to ensure total darkness. The dual-layered honeycomb fabric combines non-woven polyester with a reflective thermal barrier to block light, insulate against heat, and reduce noise.
Is Shield suitable for all window types?
Shield is designed to fit most standard window types, but there are a few considerations.
Shield won't fit windows that are not square. Additionally, the blinds require at least 1.18 inches of unobstructed recess space for proper installation. If your window doesn't meet these criteria, Shield may not be suitable for you.
Here's a list of compatible and incompatible window types to help you determine if our product is the right fit for your home:
- European Windows
- Tilt-and-Turn Windows
- Fixed Windows
- Sliding Windows
- Casement Windows
- Hung Windows
- Sash Windows
- Bay Windows
- Awning Windows
- Skylights
- Arched windows
How do I measure my windows for Shield?
To ensure correct measurements, please read our Measuring Guide. It's important that your measurements are accurate and precise, as they are crucial for the blinds to fit properly. Incorrect measurements will result in the blinds not fitting your windows.
Does Shield require any special maintenance?
Shield is low-maintenance. The non-woven polyester fabric resists dust and stains, requiring only occasional cleaning with a damp cloth. No special cleaners or treatments are necessary.
How does Shield look from the outside?
The interior of the Shield matches your fabric choice, while the exterior is always Quartz to reflect light. For example, if you select Graphite, the interior side will be Graphite, but the exterior will remain Quartz. This design ensures a uniform appearance from the outside and is intended to reflect light.
How do I install Shield?
To install Shield, follow our step-by-step instructions in our Installation Guide.
